Description

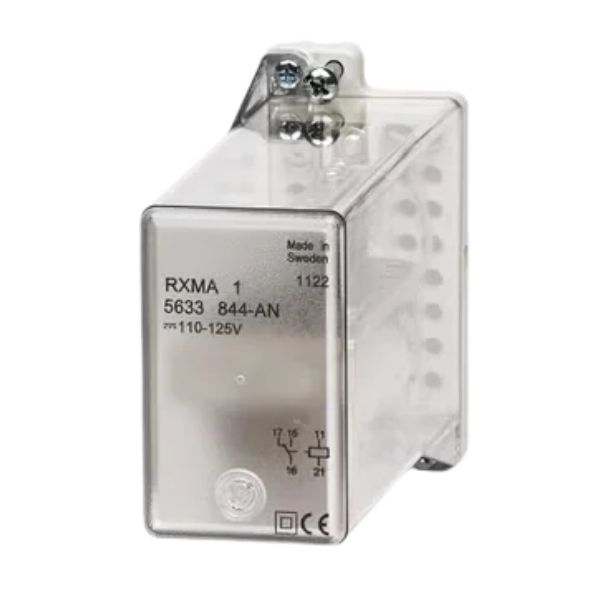

RXMA 1 – General Purpose Relay

RXMA 1 is a general purpose auxiliary relay having up to 7 contacts. The design simplicity and low burden make it suitable as an interposing relay in control equipment, contact multiplication, general signalling purposes, and various applications in protective relay assemblies and panels.

The contacts are of the bifurcated twin-contact design, having two paths for current in parallel, which gives added contact-making security. It is designed for DC operation (AC via RTXE diodes) and occupies only one COMBIFLEX modular relay seat. This relay also offers a long mechanical life.

Main Features:

• Up to 7 contacts
• Low power consumption
• Long mechanical life
• Twin contacts give high contact reliability even at low voltages
• Wide operating range
