Description

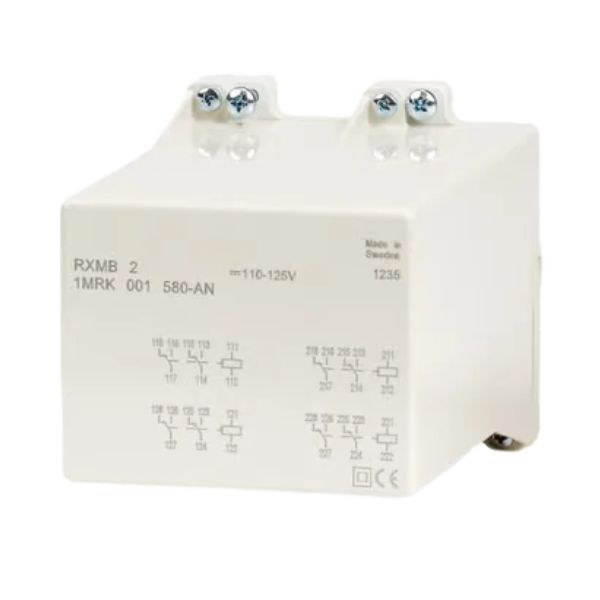

RXMB 2 – High-speed relay

The RXMB 2 auxiliary relay supplements the RXMB 1 by providing additional usable contacts. The RXMB 2 provides high-speed operation and offers several configurations with regard to the number of contacts and coil configurations. One version provides 4 independent relays with two change-over contacts each. Another version provides one relay assembly with 10 change-over contacts. A third relay variant provides 15 contacts.

The relay is available with contact configurations according to the earlier relay type RXMA 2 and may therefore be used when such contact configurations are needed, e.g. when replacing an earlier standard application.

Please note that the operating times differ and that the new RXMB 2 relay is faster both on pick-up and drop-out. Other operating requirements, such as an elevated pick-up level, may be achieved using the RTXV.

Main Features:

• Wide range of contact configurations
• Pin-compatible versions with RXMA 2
• 15 contacts or 10 change-over contacts
• One version with four independent relays, each with two change-over contacts
