RXT – Plug-in component units

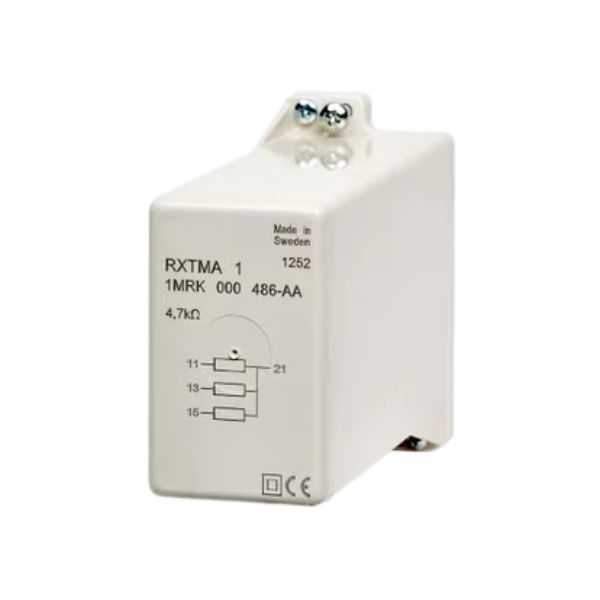

The RXT unit is available with resistors (fixed and variable), potentiometers, capacitors, diodes, and rectifiers. It contains a ready-wired component plate onto which components are soldered. The unit can contain up to 8 individual components.

Because of heat build-up, total loading should not exceed 2,5 W continuously, nor should individual resistors be loaded with more than 30 % of their rating. The unit occupies one seat (2U 6C) and should be mounted on a terminal base, type RX4 or RX2H.

The RXT plug-in unit offers a convenient way of including resistors, capacitors or diodes in a protection circuit. Due to its modular construction, the unit can be easily mounted along with other COMBIFLEX relays or protection assemblies.
