Description

RXTUG – DC/DC converter with regulated dual output voltage

RXTUG 22H is used for auxiliary voltage supply of electronic relay circuits. It is suitable for use where up to 15 W continuous output power is required, e.g., for the supply of protective relays or other automation equipment.

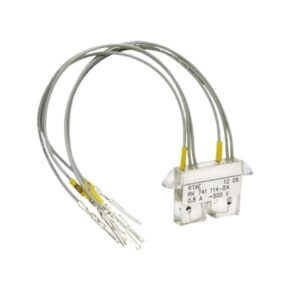

The RXTUG 22 can be powered from any DC voltage source from 24 V to 250 V. When redundant power supplies are needed, parallel-operated RXTUG 22H may be used with isolating diodes, e.g., RTXE.

Main Features:

• Input voltage: 24 – 250 V DC
• Selectable dual output voltage: 12, 18, and 24 V
• Galvanically separated inputs and outputs
• Handles 15 W load continuously, 20 W temporarily
• LED indicates proper in-service operation
• Output voltage monitored
• Loss-of-voltage alarmed
